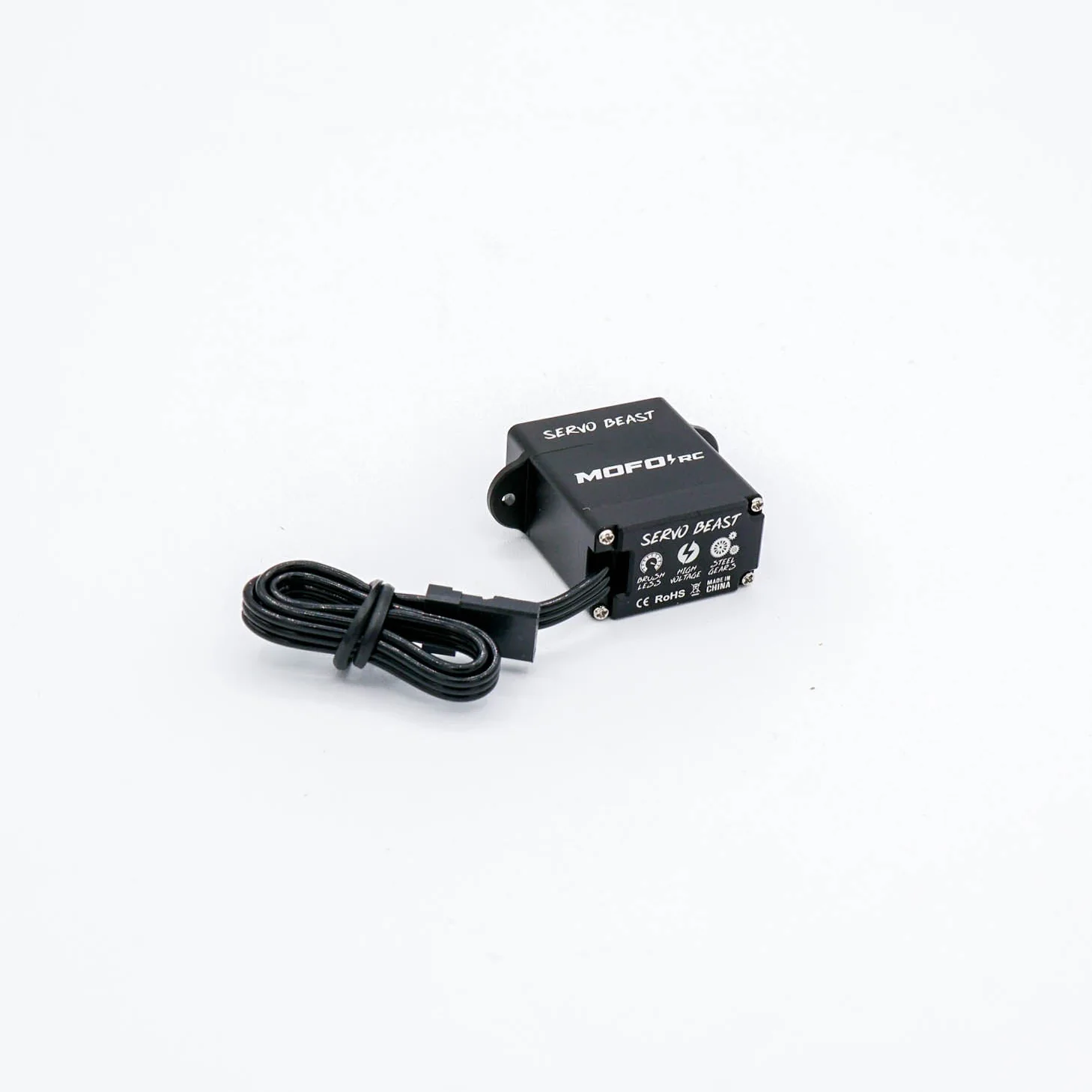

The Mofo RC ServoBeast is a literal beast. The absolute, strongest micro servo currently on the market, period. We previously underrated this servo by 30%! The true underdog servo, until now. This servo features our newest case design with a dual-exit wire harness. The case is designed so that the wire runs as a rear exit, but can also be ran out the side for vehicles that require it.

Specs

• Case/Horn Material: Aluminum
• Gears: Hardened Steel
• Motor: Brushless
• Voltage Range: 4.8v-8.4v
• Water-Resistant- O-ring Sealed Case. Submarining is not covered by warranty.
• Rounded servo ears for extra frame clearance
• Mounting Holes: 1.4mm, Can easily be drilled out for other sizes
• Weight: 23g
• BEC: Recommended, depending on ESC. May overwhelm some stock ESCs.

Includes

• 1 x ServoBeast Aluminum 2.0
• 1 x 7075 Aluminum Horn w/ M1.4 Threads
• Miscellaneous mounting hardware.

Voltage	Stall Torque	Operating Speed
4.8V	131 OZ-in (9.5KG-CM)	0.105 Sec/60*
6.0V	152 OZ-in (11KG-CM)	0.092 Sec/60*
7.4V	178 OZ-in (12.8KG-CM)	0.075 Sec/60*
8.4V	205 OZ-in (14.8 KG-CM)	0.068 Sec/60*

Dimensions

• Height: 31.6mm
• Width: 23mm
• Thickness: 13.4mm

Fits

• SCX24
  • Mofo RC | BSME Servo Mount
• TRX4M
  • May need to drill out mounting holes to accommodate larger mounting screws.
  • Included horn will also need to have holes enlarged to 2.5mm or use an alternate horn.
• Redcat
  • Needs a horn with 2mm or 2.5mm threads depending on model.
  • Thread size has changed over time
• FMS
  • May need an alternate servo horn depending on model.

GET REPLACMENT GEAR SETS HERE

Warranty

• 90 Day Warranty
• 1 Year Warranty on Gears
• Must return for inspection
