Mofo RC | NanoBeast Brushless Motor - HardPark MOA Axle Edition

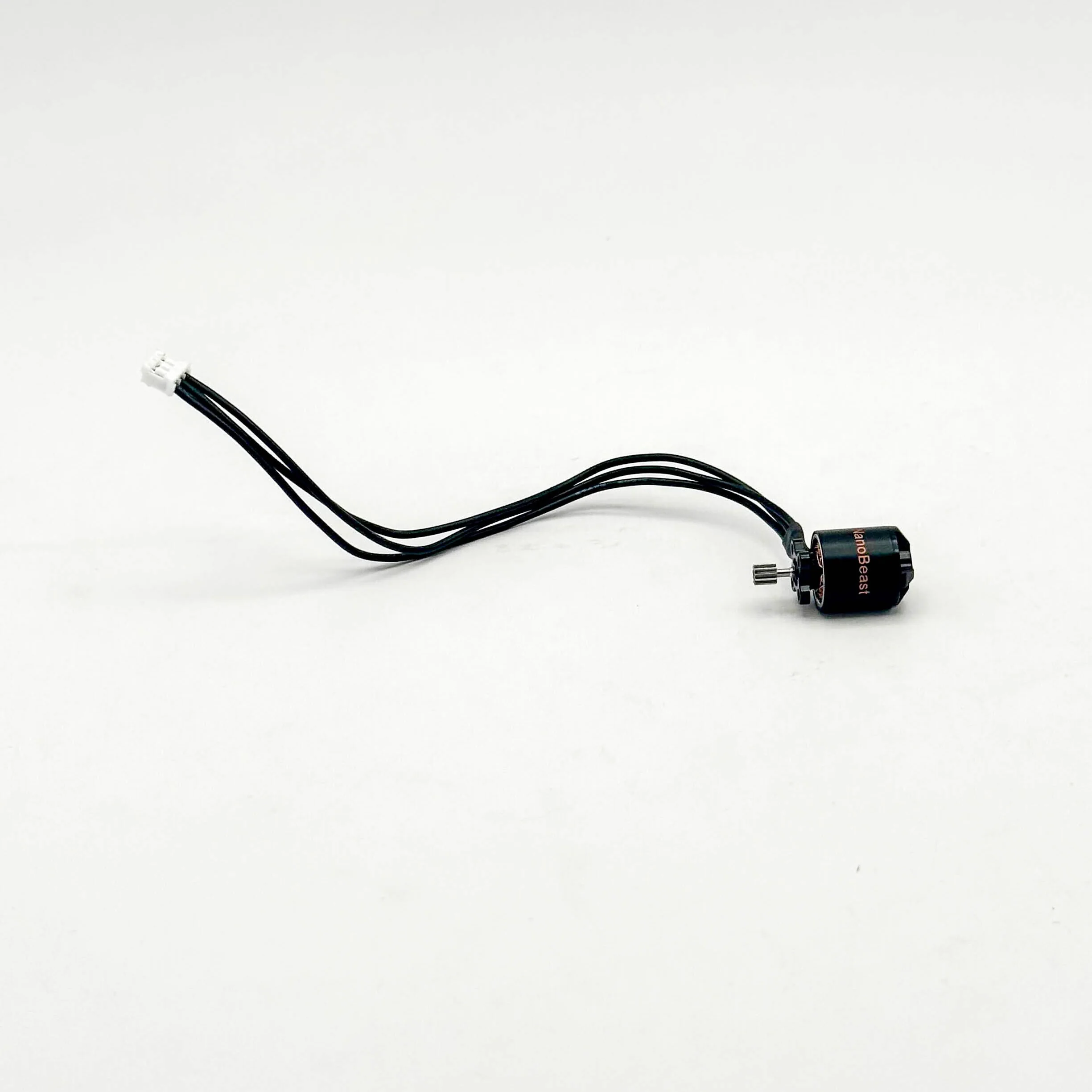

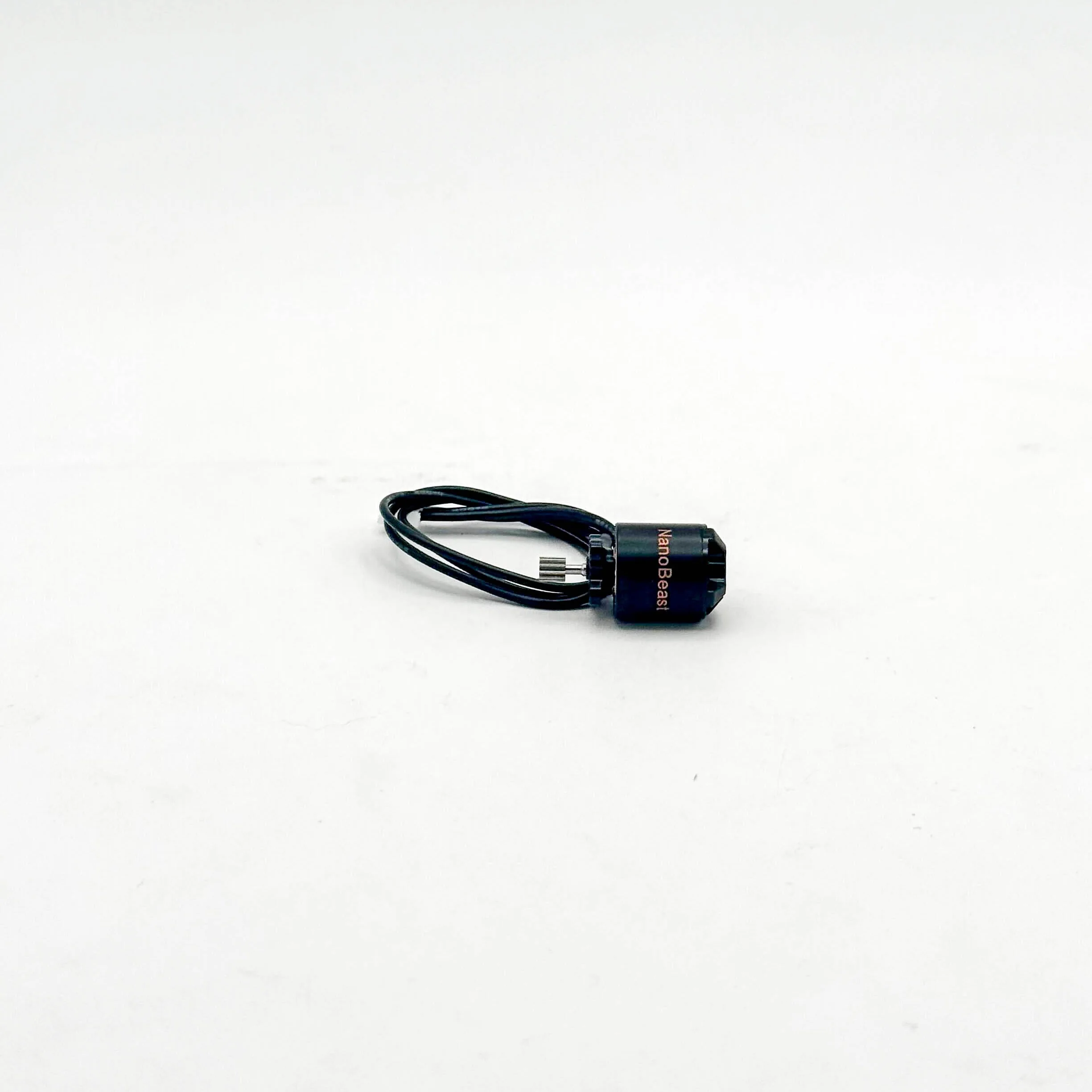

This is the Mofo Rc NanoBeast Brushless Motor for the HardPark MOA Axles.
These are sold individually - You will need 2 of them to complete both front and rear axles.
The Motor will come with a pre-installed Steel pinion gear that is pressed onto the motor so you will not need to fiddle with tiny set screws or pinion depth adjustments. Simply stick the motor in, adjust the gear mesh and tighten the included motor screws.
Included:
- NanoBeast 3200KV Motor with pinion gear installed.
- Steel pinion gear - 1.5mm Shaft , Mod.3, 11T Installed on motor
- Screws to install the motor into the axle.
DO NOT ATTEMPT to use the longer screws or you will damage the internal Windings of the motor.
There will be some screws included that you will not need. You can just stick them in your Hardware bin for later use elsewhere. The screws you will use are the M2 x 5mm, The shortest of the screws included in the baggie.
Specs and Dimensions
| KV | 3200 |
| Voltage | 2-3s Lipo |
| Bolt Pattern | 9mm |
| Poles | 12 Pole, 9 Slot |
| Stator Diameter/Length | 11mm x 11mm |
| Shaft Diameter | 1.5mm (Accepts Press-Fit Pinions Only) |
| Case Diameter/Length | 14.6mm x 20.5mm |
| Weight | 13 grams |
| Wire Length | 160mm |
| Connector | Standard PH2.0 3 pin |
