Mofo RC | NanoBeast 3200kv Brushless Motor/Reaper ESC/Standard LCG Mount + Transmission (For Axial® SCX24™/AX24™)
The NanoBeast is our most compact brushless motor, delivering impressive power despite its size. Measuring only 14.6mm in diameter and 20.5mm in length, it’s designed to fit into the tightest spaces. Its dimensions have been precisely optimized to provide maximum power, speed, and smooth throttle control within the smallest possible form factor.

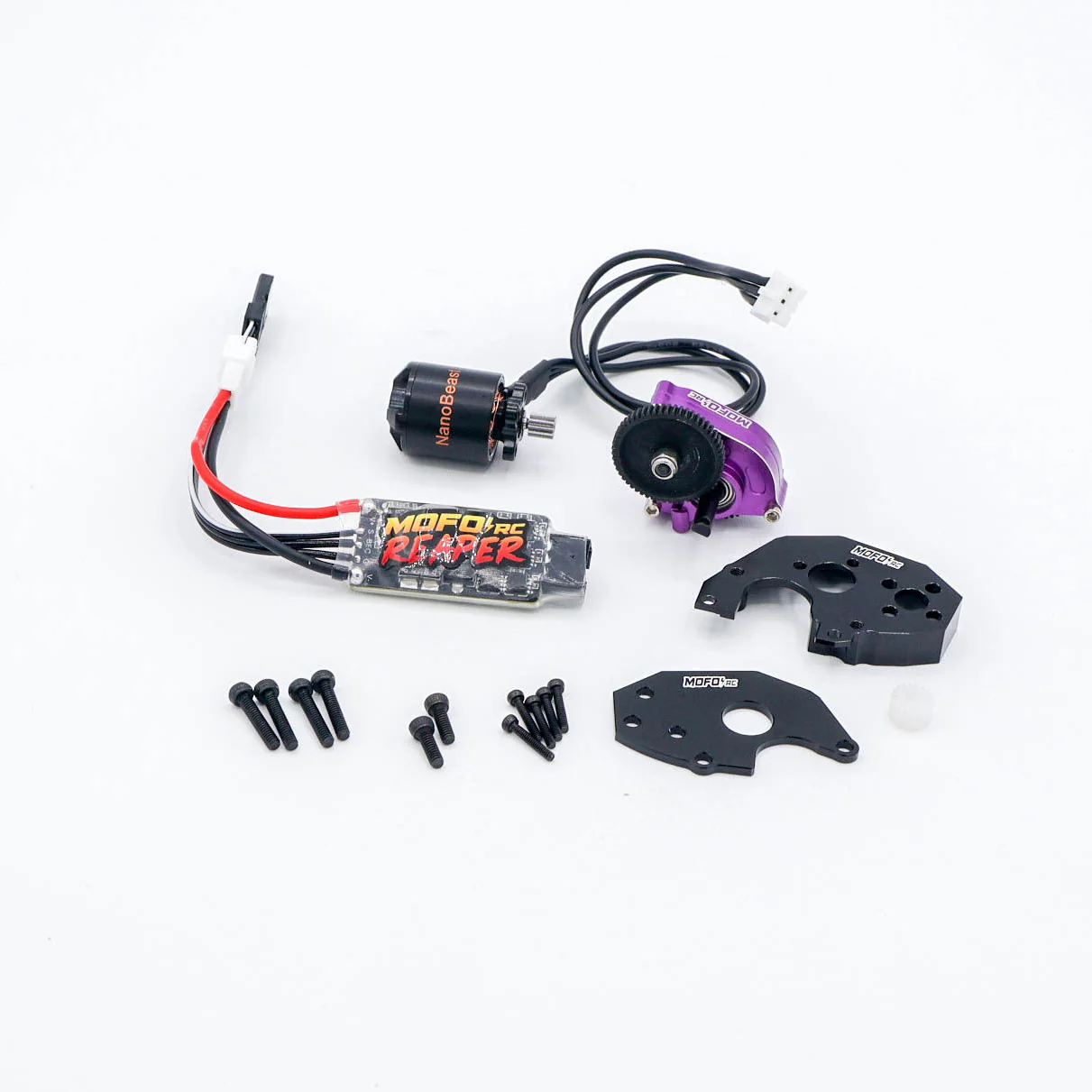

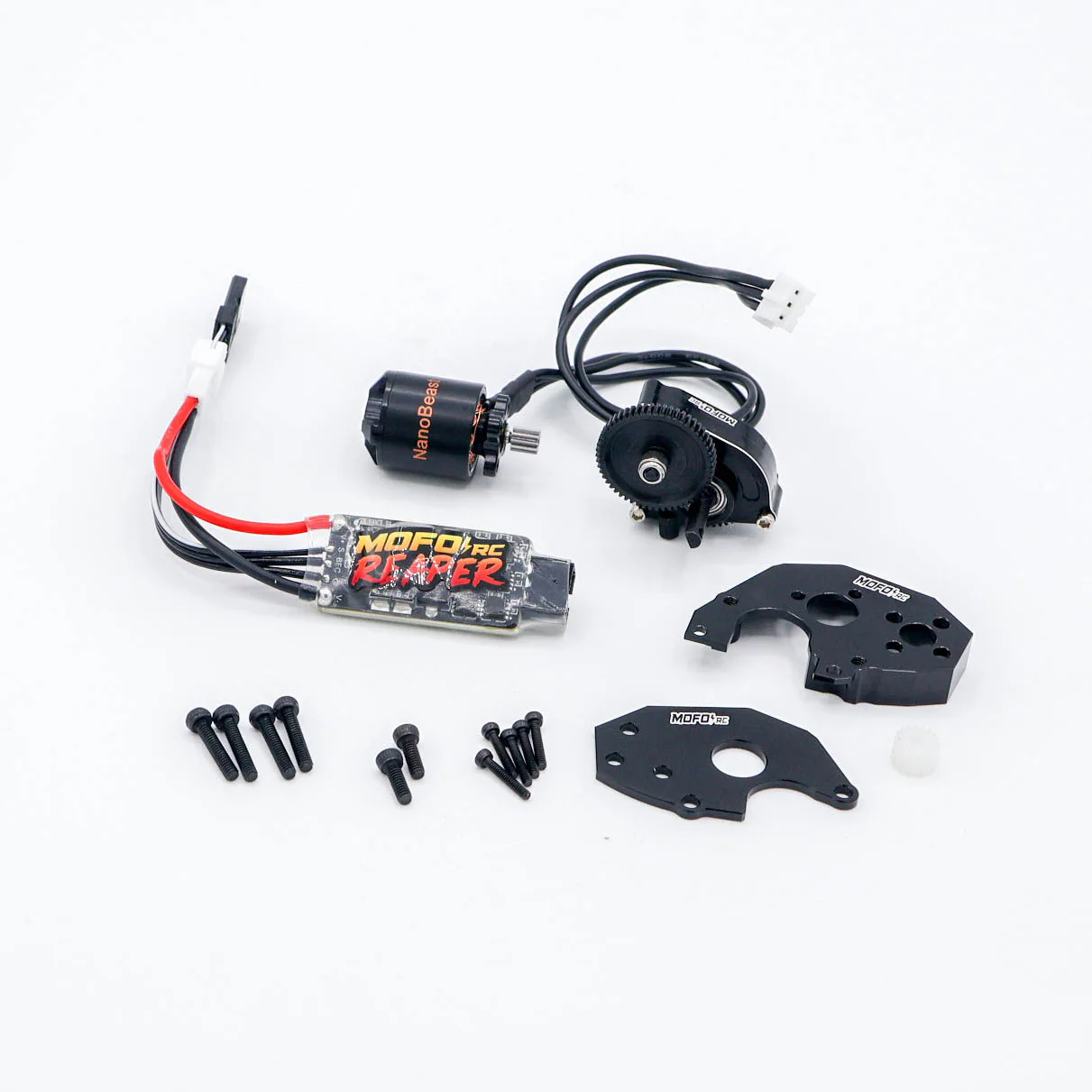

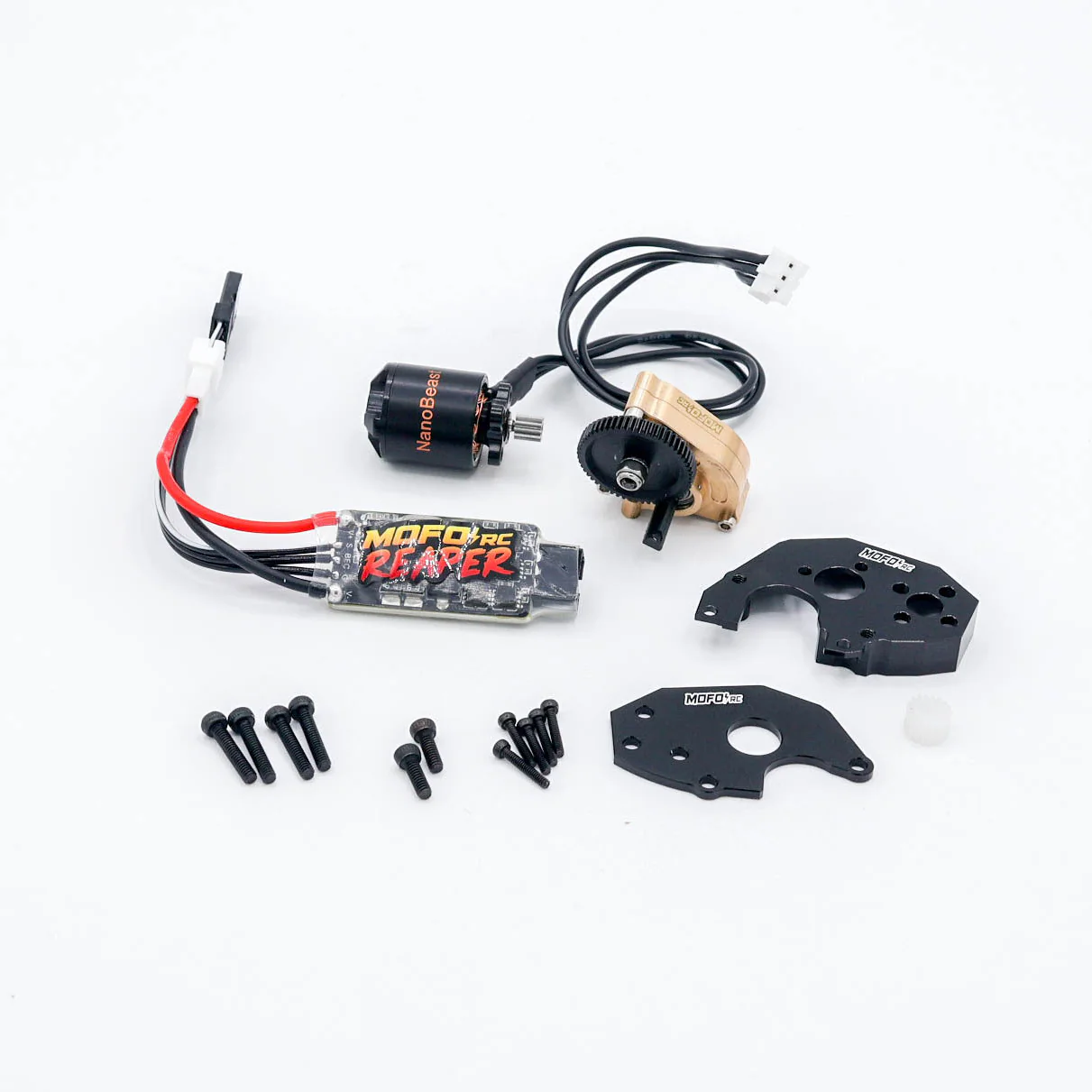

Includes
- Mofo RC | NanoBeast Motor w/ Mod.3 11t Pinion
- Mofo RC | 9mm Aluminum LCG Motor Mount w/Transfer Gear
- Mofo RC | Pre-programmed Reaper 30A ESCape 32 ESC
- Note: The ESC has our default settings for this motor, but you may want to change them depending on your setup.
- Note: The ESC has our default settings for this motor, but you may want to change them depending on your setup.
- Mofo RC | Aluminum or Brass BulletProof Transmission- No Motor Mount Version
- Includes both Mod.3 and Mod.5 Spur Gears
- Includes both Mod.3 and Mod.5 Spur Gears
Specs and Dimensions
| KV | 3200 |
| Voltage | 2-3s Lipo |
| Bolt Pattern | 9mm |
| Poles | 12 Pole, 9 Slot |
| Stator Diameter/Length | 11mm x 11mm |
| Shaft Diameter | 1.5mm (Accepts Press-Fit Pinions Only) |
| Case Diameter/Length | 14.6mm x 20.5mm |
| Weight | 13 grams |
| Wire Length | 160mm |
| Connector | Standard PH2.0 3 pin |
The NanoBeast is our most compact brushless motor, delivering impressive power despite its size. Measuring only 14.6mm in diameter and 20.5mm in length, it’s designed to fit into the tightest spaces. Its dimensions have been precisely optimized to provide maximum power, speed, and smooth throttle control within the smallest possible form factor.
Includes
- Mofo RC | NanoBeast Motor w/ Mod.3 11t Pinion
- Mofo RC | 9mm Aluminum LCG Motor Mount w/Transfer Gear
- Mofo RC | Pre-programmed Reaper 30A ESCape 32 ESC
- Note: The ESC has our default settings for this motor, but you may want to change them depending on your setup.
- Note: The ESC has our default settings for this motor, but you may want to change them depending on your setup.
- Mofo RC | Aluminum or Brass BulletProof Transmission- No Motor Mount Version
- Includes both Mod.3 and Mod.5 Spur Gears
- Includes both Mod.3 and Mod.5 Spur Gears
Specs and Dimensions
| KV | 3200 |
| Voltage | 2-3s Lipo |
| Bolt Pattern | 9mm |
| Poles | 12 Pole, 9 Slot |
| Stator Diameter/Length | 11mm x 11mm |
| Shaft Diameter | 1.5mm (Accepts Press-Fit Pinions Only) |
| Case Diameter/Length | 14.6mm x 20.5mm |
| Weight | 13 grams |
| Wire Length | 160mm |
| Connector | Standard PH2.0 3 pin |
Original: $154.99
-65%$154.99
$54.25Description
The NanoBeast is our most compact brushless motor, delivering impressive power despite its size. Measuring only 14.6mm in diameter and 20.5mm in length, it’s designed to fit into the tightest spaces. Its dimensions have been precisely optimized to provide maximum power, speed, and smooth throttle control within the smallest possible form factor.
Includes
- Mofo RC | NanoBeast Motor w/ Mod.3 11t Pinion
- Mofo RC | 9mm Aluminum LCG Motor Mount w/Transfer Gear
- Mofo RC | Pre-programmed Reaper 30A ESCape 32 ESC
- Note: The ESC has our default settings for this motor, but you may want to change them depending on your setup.
- Note: The ESC has our default settings for this motor, but you may want to change them depending on your setup.
- Mofo RC | Aluminum or Brass BulletProof Transmission- No Motor Mount Version
- Includes both Mod.3 and Mod.5 Spur Gears
- Includes both Mod.3 and Mod.5 Spur Gears
Specs and Dimensions
| KV | 3200 |
| Voltage | 2-3s Lipo |
| Bolt Pattern | 9mm |
| Poles | 12 Pole, 9 Slot |
| Stator Diameter/Length | 11mm x 11mm |
| Shaft Diameter | 1.5mm (Accepts Press-Fit Pinions Only) |
| Case Diameter/Length | 14.6mm x 20.5mm |
| Weight | 13 grams |
| Wire Length | 160mm |
| Connector | Standard PH2.0 3 pin |
