Mofo RC | NanoBAM 3500Kv Brushless Motor/Reaper ESC/ Forward Mount/Trans Combo (For Axial® SCX24™)
The NanoBam is our most popular nano/compact sized brushless motor. With more torque and a small speed increase over our NanoBeast, it is the perfect all-around setup for most vehicles. With our LCG mount, you can often fit extras such as interiors in a small body.
Includes
- Mofo RC | NanoBam 3500kv Motor w/ Pinion of Choice
- Mod.3 is most common
- 11t is standard
- 14t is slightly faster
- Mod.3 is most common
- Mofo RC | 9mm Aluminum Forward Facing Mount
- Mofo RC | Pre-programmed Reaper 30A ESCape 32 ESC
- Note: The ESC has our default settings for this motor, but you may want to change them depending on your setup.
- Note: The ESC has our default settings for this motor, but you may want to change them depending on your setup.

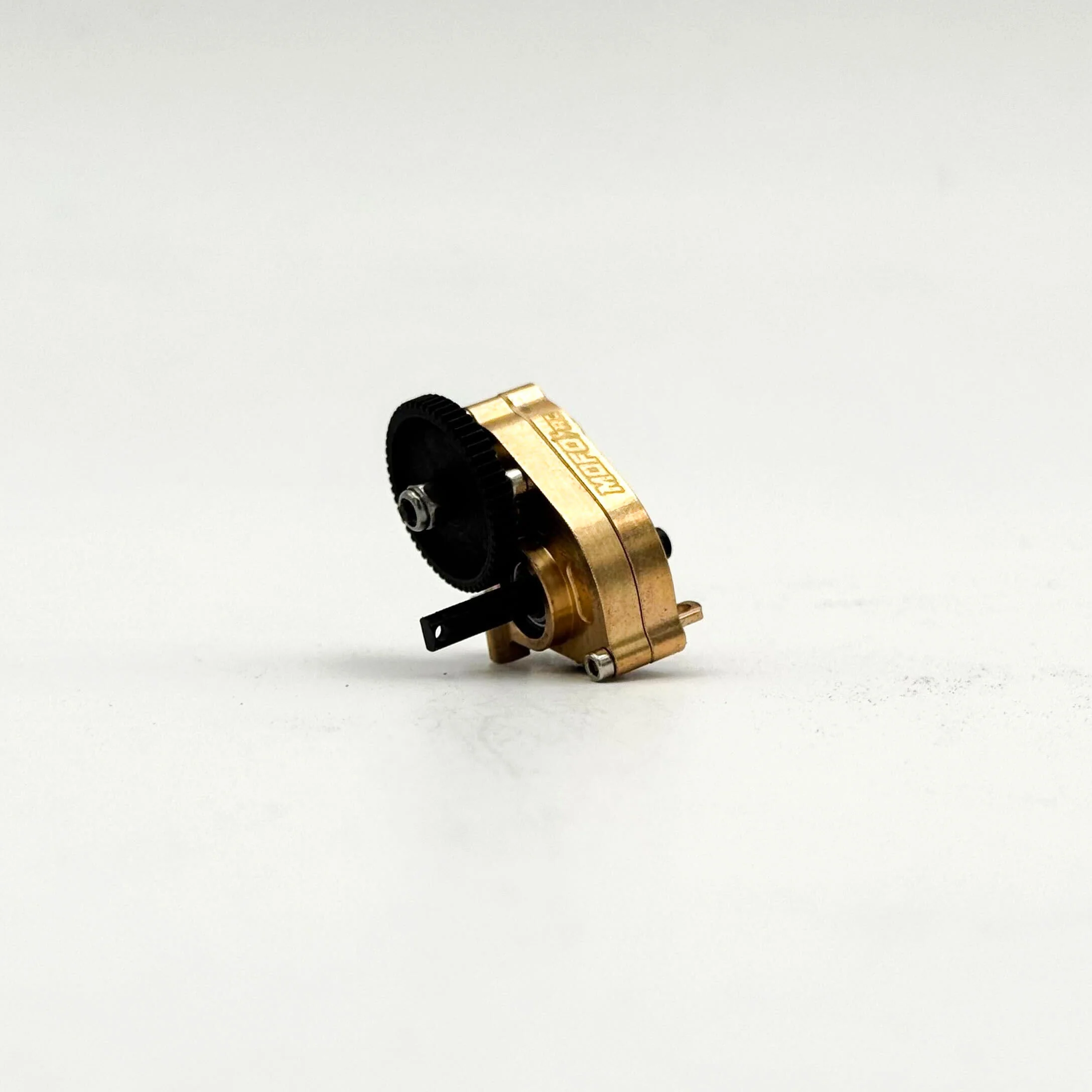

- Mofo RC | Aluminum or Brass BulletProof Transmission- No Motor Mount Version
- Includes both Mod.3 and Mod.5 Spur Gears
Specs and Dimensions
| KV | 3500 |
| Voltage | 2-3s Lipo |
| Bolt Pattern | 9mm |
| Poles | 12 Pole, 9 Slot |
| Stator Diameter/Length | 12mm x 11mm |
| Shaft Diameter | 1.5mm (Accepts Press-Fit Pinions Only) |
| Case Diameter/Length | 16.3mm x 21mm |
| Weight | 16 grams |
| Wire Length | 125mm |
| Connector | Standard PH2.0 3 pin |
Notes: This combo may require some plastic trimming in stock vehicles or moving of components like the battery tray.
The NanoBam is our most popular nano/compact sized brushless motor. With more torque and a small speed increase over our NanoBeast, it is the perfect all-around setup for most vehicles. With our LCG mount, you can often fit extras such as interiors in a small body.
Includes
- Mofo RC | NanoBam 3500kv Motor w/ Pinion of Choice
- Mod.3 is most common
- 11t is standard
- 14t is slightly faster
- Mod.3 is most common
- Mofo RC | 9mm Aluminum Forward Facing Mount
- Mofo RC | Pre-programmed Reaper 30A ESCape 32 ESC
- Note: The ESC has our default settings for this motor, but you may want to change them depending on your setup.
- Note: The ESC has our default settings for this motor, but you may want to change them depending on your setup.
- Mofo RC | Aluminum or Brass BulletProof Transmission- No Motor Mount Version
- Includes both Mod.3 and Mod.5 Spur Gears
Specs and Dimensions
| KV | 3500 |
| Voltage | 2-3s Lipo |
| Bolt Pattern | 9mm |
| Poles | 12 Pole, 9 Slot |
| Stator Diameter/Length | 12mm x 11mm |
| Shaft Diameter | 1.5mm (Accepts Press-Fit Pinions Only) |
| Case Diameter/Length | 16.3mm x 21mm |
| Weight | 16 grams |
| Wire Length | 125mm |
| Connector | Standard PH2.0 3 pin |
Notes: This combo may require some plastic trimming in stock vehicles or moving of components like the battery tray.
Original: $149.99
-65%$149.99
$52.50Description
The NanoBam is our most popular nano/compact sized brushless motor. With more torque and a small speed increase over our NanoBeast, it is the perfect all-around setup for most vehicles. With our LCG mount, you can often fit extras such as interiors in a small body.
Includes
- Mofo RC | NanoBam 3500kv Motor w/ Pinion of Choice
- Mod.3 is most common
- 11t is standard
- 14t is slightly faster
- Mod.3 is most common
- Mofo RC | 9mm Aluminum Forward Facing Mount
- Mofo RC | Pre-programmed Reaper 30A ESCape 32 ESC
- Note: The ESC has our default settings for this motor, but you may want to change them depending on your setup.
- Note: The ESC has our default settings for this motor, but you may want to change them depending on your setup.
- Mofo RC | Aluminum or Brass BulletProof Transmission- No Motor Mount Version
- Includes both Mod.3 and Mod.5 Spur Gears
Specs and Dimensions
| KV | 3500 |
| Voltage | 2-3s Lipo |
| Bolt Pattern | 9mm |
| Poles | 12 Pole, 9 Slot |
| Stator Diameter/Length | 12mm x 11mm |
| Shaft Diameter | 1.5mm (Accepts Press-Fit Pinions Only) |
| Case Diameter/Length | 16.3mm x 21mm |
| Weight | 16 grams |
| Wire Length | 125mm |
| Connector | Standard PH2.0 3 pin |
Notes: This combo may require some plastic trimming in stock vehicles or moving of components like the battery tray.
