Mofo RC | MVP 2550Kv Brushless Pancake Motor/Reaper ESC/Mount + Transmission Combos- (For Axial® SCX24™/AX24™)
The MVP Motor from Mofo RC features a 2550 KV rating and supports 2s, 3s, or even 4s power configurations. We call it the "Medio" as it is 50% faster than the SMP and 50% slower than the ROP. It is perfect for those that want a little faster than the SMP, but still that same, slow speed torque and control. Perfectly paired with our Reaper ESC.

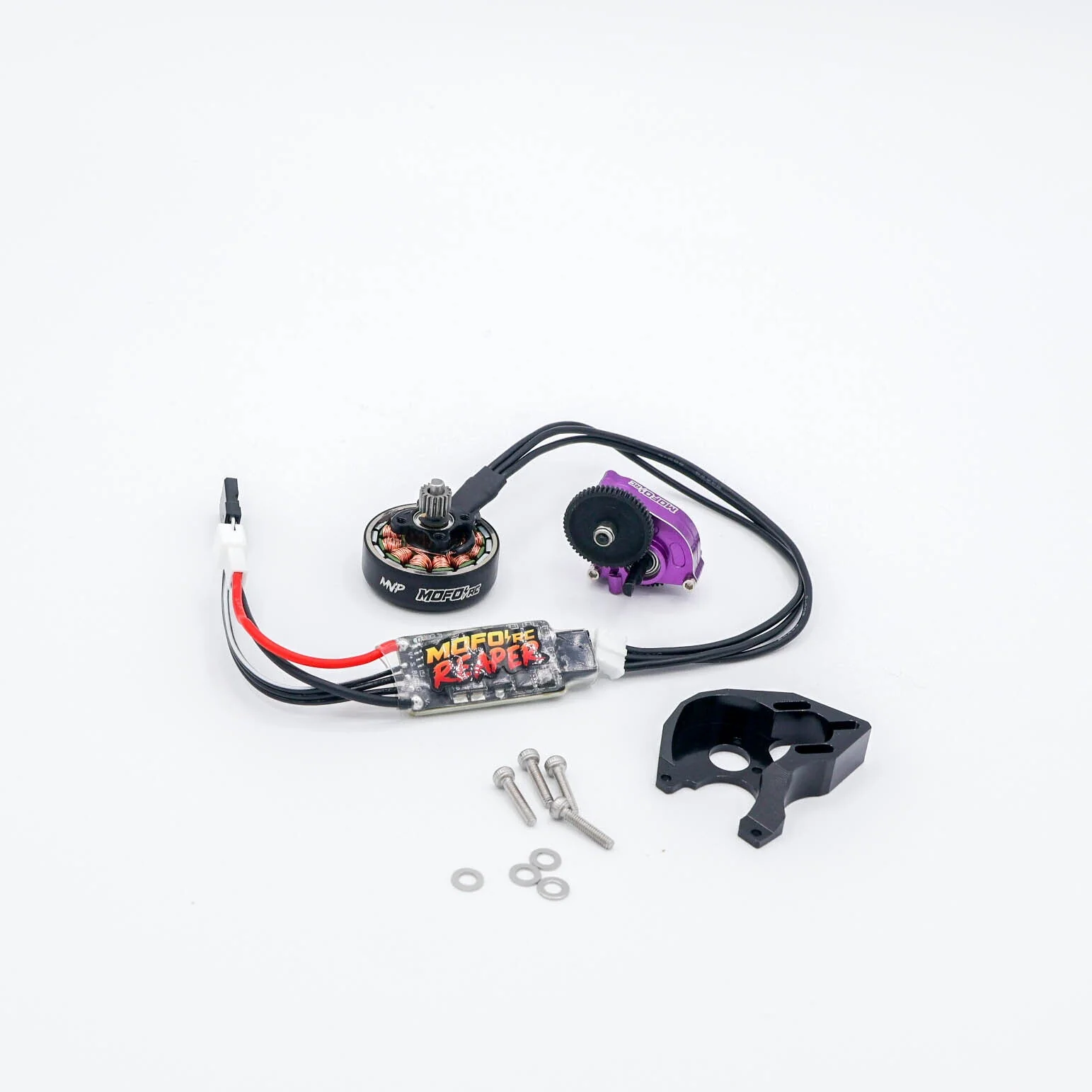

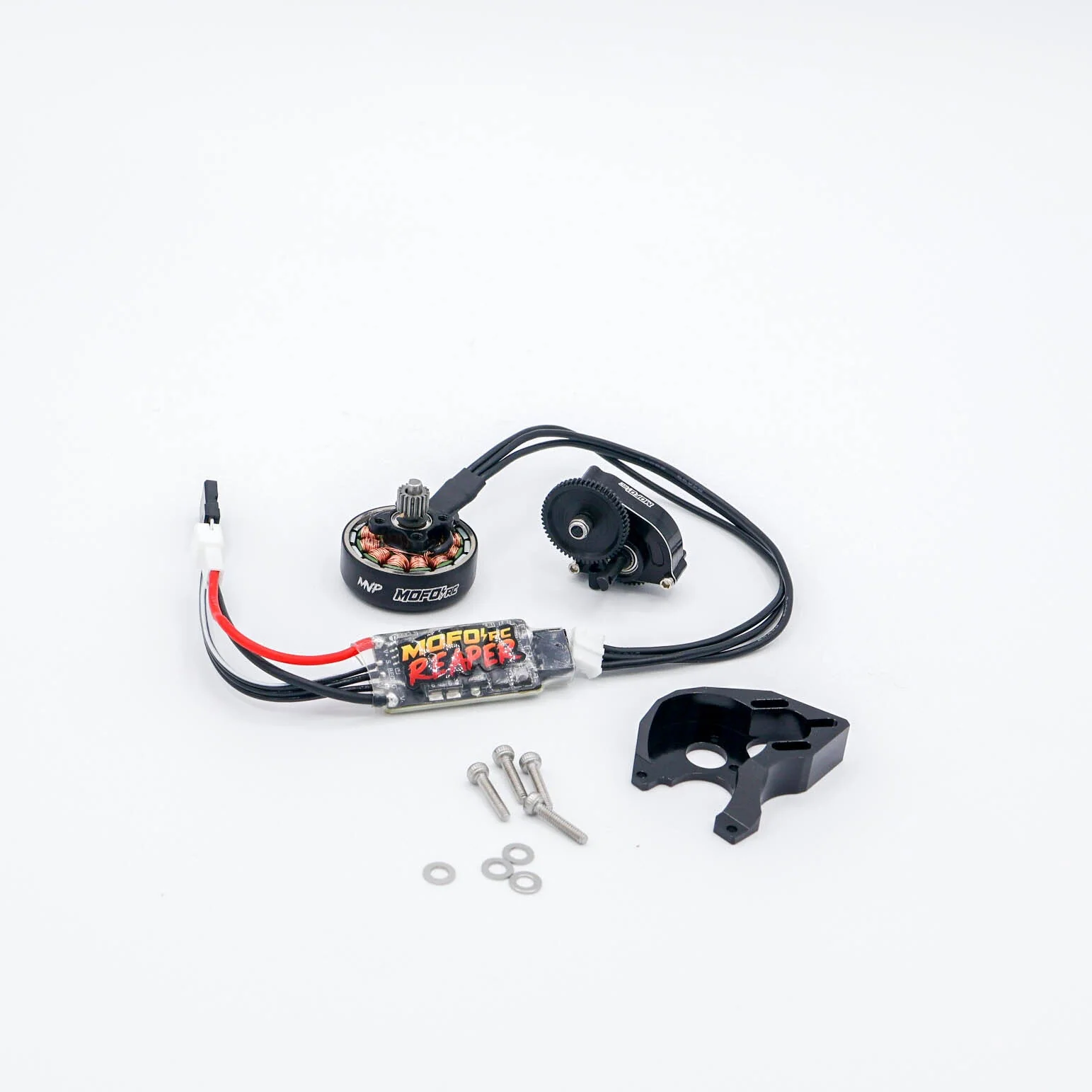

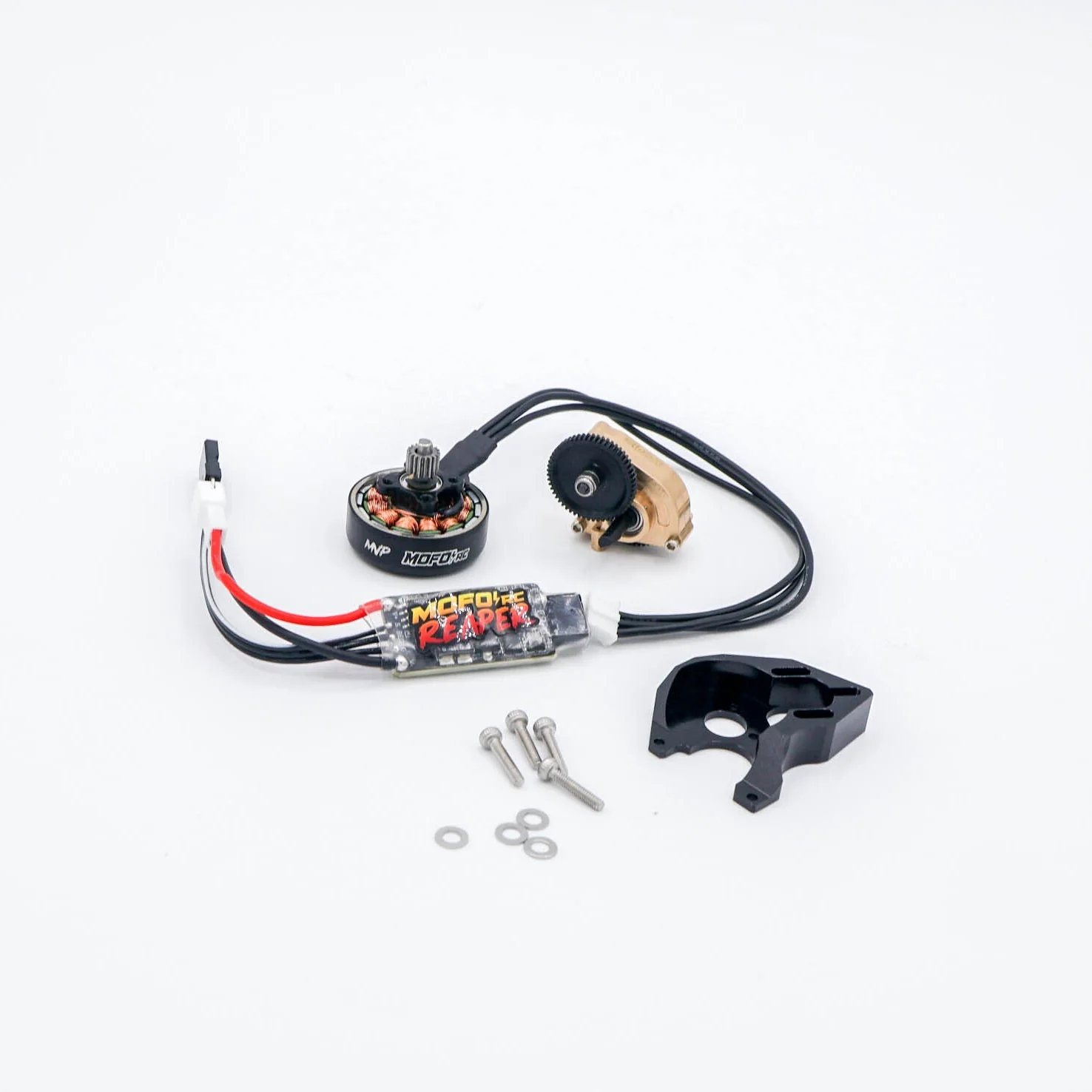

Includes
- Mofo RC | MVP Motor with/without pinion of choice
- Mofo RC | 12mm Aluminum Forward Facing Motor Mount
- Mofo RC | Pre-programmed Reaper 30A ESCape 32 ESC
- Note: The ESC has our default settings for this motor, but you may want to change them depending on your setup.
- Note: The ESC has our default settings for this motor, but you may want to change them depending on your setup.
- Mofo RC | Aluminum or Brass BulletProof Transmission- No Motor Mount Version
- Includes both Mod.3 and Mod.5 Spur Gears
- Includes both Mod.3 and Mod.5 Spur Gears
Gear Options
- Mod.3
- 18t Pinion Gear- Standard - Most Popular
- 20t Pinion Gear- Slight Speed Boost
- Mod.5
- 11t Pinion Gear- Standard - Larger teeth, less common
- 13t Pinion Gear- Slight Speed Boost
Specs and Dimensions
| KV | 2550 |
| Voltage | 2-4s Lipo |
| Poles | 14 Pole, 12 Slot |
| Stator Diameter/Length | 20mm x 4mm |
| Shaft Diameter | 3mm w/Flat Spot (Accepts Press-Fit or Set-Screw Pinions) |
| Case Diameter/Length | 25.6mm x 13.4mm |
| Weight | 18 grams |
| Wire Length | 160mm |
| Connector | Standard PH2.0 3 pin |
The MVP Motor from Mofo RC features a 2550 KV rating and supports 2s, 3s, or even 4s power configurations. We call it the "Medio" as it is 50% faster than the SMP and 50% slower than the ROP. It is perfect for those that want a little faster than the SMP, but still that same, slow speed torque and control. Perfectly paired with our Reaper ESC.
Includes
- Mofo RC | MVP Motor with/without pinion of choice
- Mofo RC | 12mm Aluminum Forward Facing Motor Mount
- Mofo RC | Pre-programmed Reaper 30A ESCape 32 ESC
- Note: The ESC has our default settings for this motor, but you may want to change them depending on your setup.
- Note: The ESC has our default settings for this motor, but you may want to change them depending on your setup.
- Mofo RC | Aluminum or Brass BulletProof Transmission- No Motor Mount Version
- Includes both Mod.3 and Mod.5 Spur Gears
- Includes both Mod.3 and Mod.5 Spur Gears
Gear Options
- Mod.3
- 18t Pinion Gear- Standard - Most Popular
- 20t Pinion Gear- Slight Speed Boost
- Mod.5
- 11t Pinion Gear- Standard - Larger teeth, less common
- 13t Pinion Gear- Slight Speed Boost
Specs and Dimensions
| KV | 2550 |
| Voltage | 2-4s Lipo |
| Poles | 14 Pole, 12 Slot |
| Stator Diameter/Length | 20mm x 4mm |
| Shaft Diameter | 3mm w/Flat Spot (Accepts Press-Fit or Set-Screw Pinions) |
| Case Diameter/Length | 25.6mm x 13.4mm |
| Weight | 18 grams |
| Wire Length | 160mm |
| Connector | Standard PH2.0 3 pin |
Original: $144.99
-65%$144.99
$50.75Description
The MVP Motor from Mofo RC features a 2550 KV rating and supports 2s, 3s, or even 4s power configurations. We call it the "Medio" as it is 50% faster than the SMP and 50% slower than the ROP. It is perfect for those that want a little faster than the SMP, but still that same, slow speed torque and control. Perfectly paired with our Reaper ESC.
Includes
- Mofo RC | MVP Motor with/without pinion of choice
- Mofo RC | 12mm Aluminum Forward Facing Motor Mount
- Mofo RC | Pre-programmed Reaper 30A ESCape 32 ESC
- Note: The ESC has our default settings for this motor, but you may want to change them depending on your setup.
- Note: The ESC has our default settings for this motor, but you may want to change them depending on your setup.
- Mofo RC | Aluminum or Brass BulletProof Transmission- No Motor Mount Version
- Includes both Mod.3 and Mod.5 Spur Gears
- Includes both Mod.3 and Mod.5 Spur Gears
Gear Options
- Mod.3
- 18t Pinion Gear- Standard - Most Popular
- 20t Pinion Gear- Slight Speed Boost
- Mod.5
- 11t Pinion Gear- Standard - Larger teeth, less common
- 13t Pinion Gear- Slight Speed Boost
Specs and Dimensions
| KV | 2550 |
| Voltage | 2-4s Lipo |
| Poles | 14 Pole, 12 Slot |
| Stator Diameter/Length | 20mm x 4mm |
| Shaft Diameter | 3mm w/Flat Spot (Accepts Press-Fit or Set-Screw Pinions) |
| Case Diameter/Length | 25.6mm x 13.4mm |
| Weight | 18 grams |
| Wire Length | 160mm |
| Connector | Standard PH2.0 3 pin |
