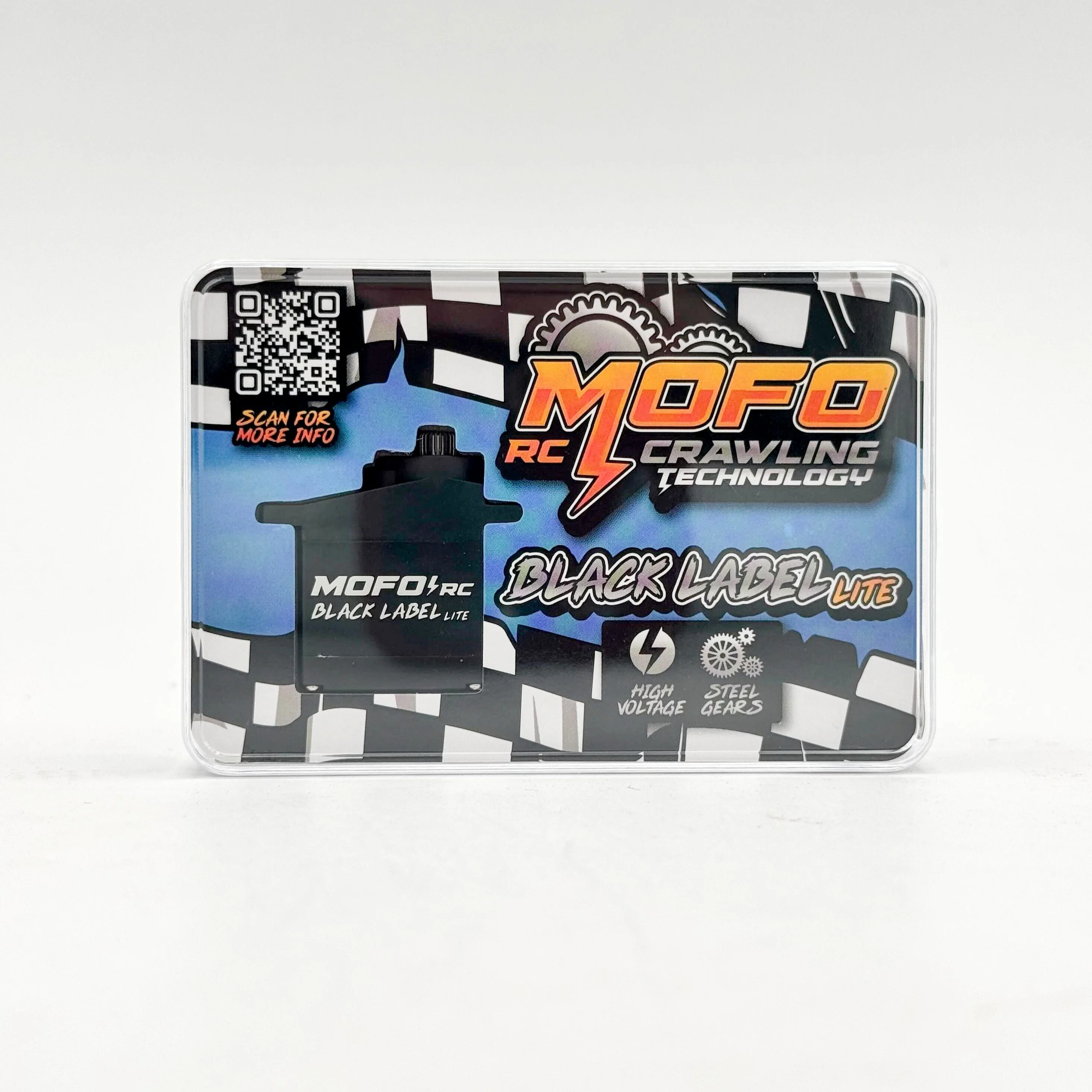

Our newest servo offering, the Black Label Lite is a fantastic upgrade for stock and lighter weight vehicles. These are very good servos, despite a lower price point. Available with an aluminum or brass center ring for additional weight or bling.

Specs

• Case Material: Plastic w/Aluminum Center Ring
• Gears: Hardened Steel
• Motor: Coreless
• Voltage Range: 4.8v-8.4v
• Water-Resistant- O-ring Sealed Case
• Mounting Holes: 2.5mm
• Weight: 17g
• BEC: Not Required
• Machined Aluminum Horn w/ M1.4 Threads included w/miscellaneous mounting hardware.

Voltage	Stall Torque	Operating Speed
4.8V	58 OZ-in (4.2KG-CM)	0.155 Sec/60*
6.0V	65 OZ-in (4.7KG-CM)	0.132 Sec/60*
7.4V	77 OZ-in (5.5KG-CM)	0.105 Sec/60*
8.4V	88 OZ-in (6.3KG-CM)	0.093 Sec/60*

Dimensions

• Height: 29.4mm
• Width: 22.8mm
• Thickness: 12mm

Fits

• SCX24
  • Mofo RC | BSME Servo Mount
• TRX4M
  • Stock Mount
  • Note: An alternate servo horn will be needed or you will need to drill the included one to accommodate a 2.5mm screw used in the Traxxas linkage.
  • The Injora 25t Servo Horn is not compatible as it is for a full size servo output gear.
• Redcat
  • Needs a horn with 2mm or 2.5mm threads depending on model.
  • Thread size has changed over time
• FMS

  • May need an alternate servo horn depending on model.
• Losi Micro T/Micro B
  • Not compatible due to longer case length unless you do rearranging of electronics

Warranty

• 30 Day Warranty for Manufacturing Defects
• Must return for inspection
