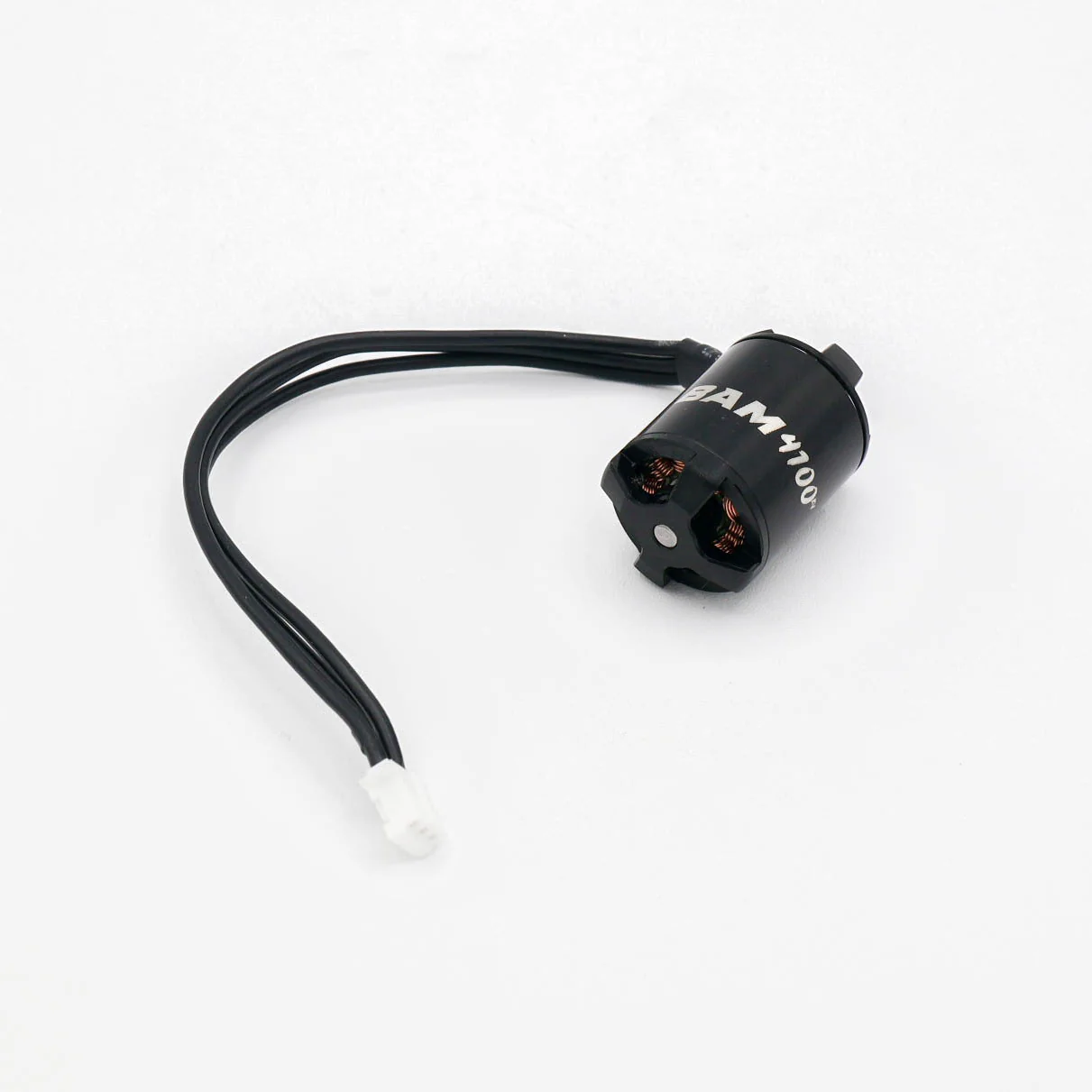

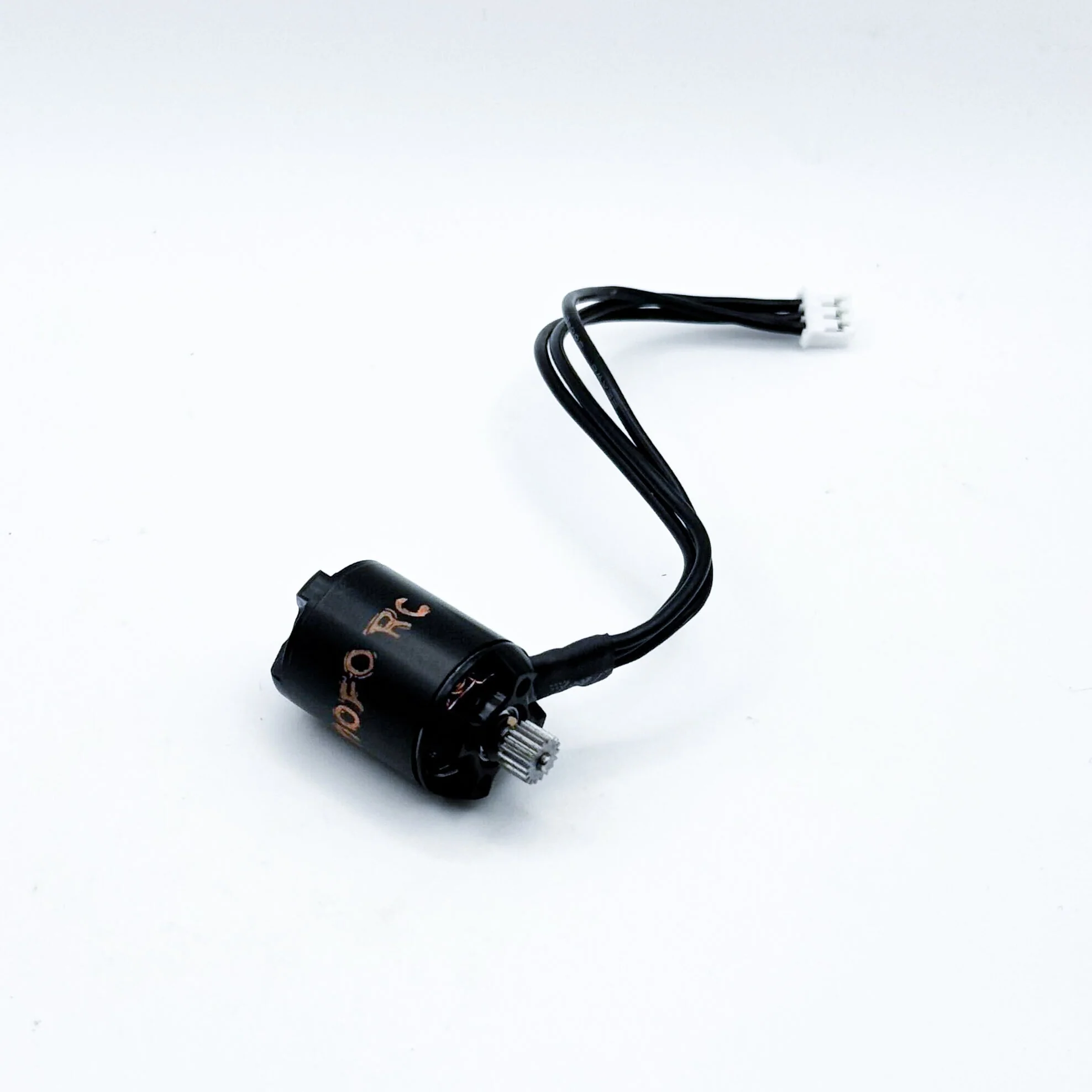

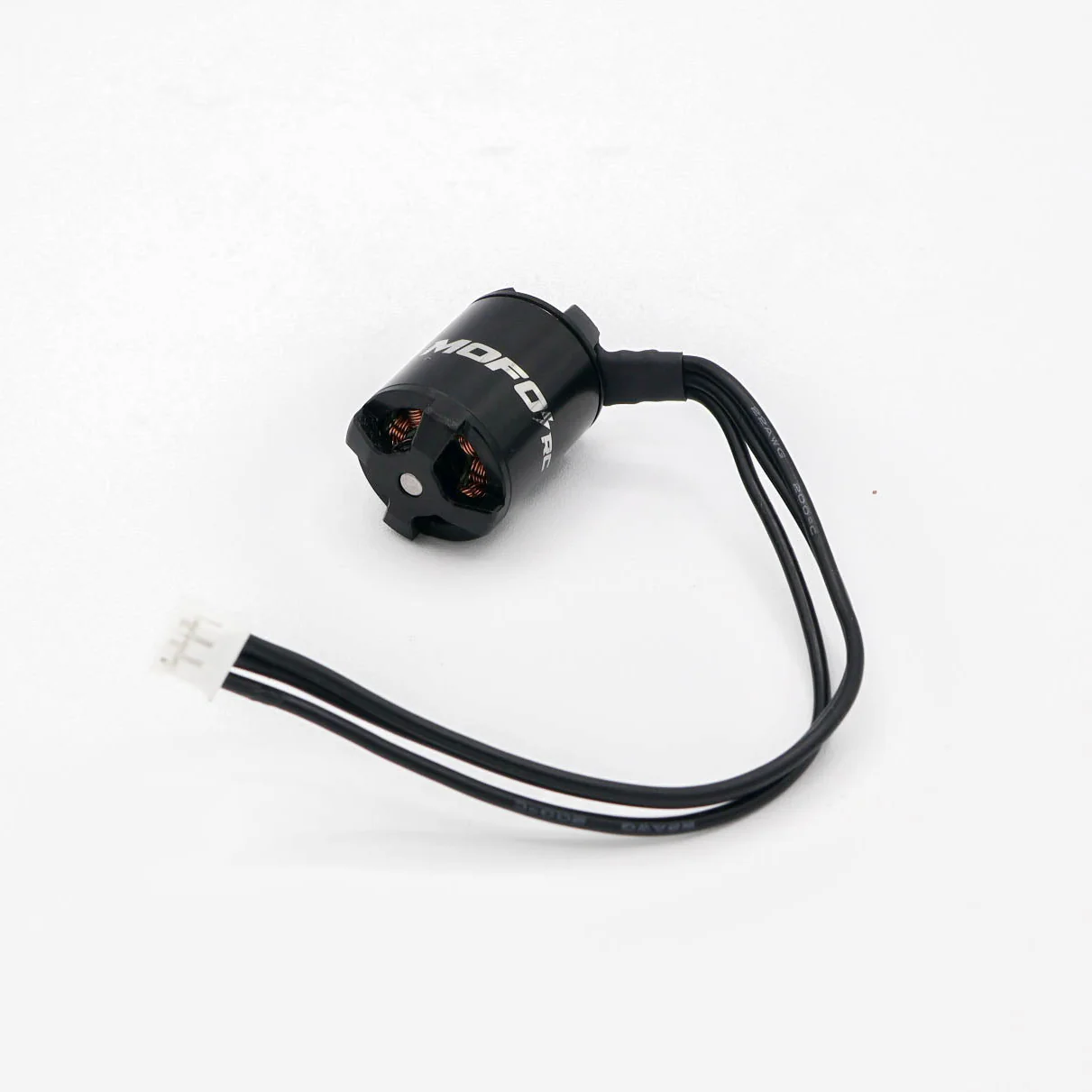

Our "BAM" series of motors is our strongest and longest motor available. It is perfect for those heavier builds or for those looking for the most torque and overall power. The lower KV options are perfect for those running higher 3-4s voltages. Our 4100 KV option is for those looking for monster power and speed. Is is best to run on 2S LiPo for most people as you will need to watch motor temperatures on 3s LiPo.

Gear Options

• Mod.3- Most common (Compatible with stock spur gear)
• Mod.5 - Larger teeth for more durability (less popular)
• Mod.4 - Least common

Motor Mounts

All versions will work with our 12mm Forward Facing Motor mounts. The mod.3 24t speed edition is intended to be used with our 12mm race mount if you want the highest speed possible

Specs and Dimensions

Kv	1900, 2200, 4100
Voltage	2-4s Lipo (1900/2200Kv), 2s (4100 Kv)
Bolt Pattern	12mm
Poles	12 Pole, 9 Slot
Stator Diameter/Length	13mm x 16mm
Shaft Diameter	2mm (Accepts Press-Fit Pinions Only)
Case Diameter/Length	18mm x 28mm
Weight	28 grams
Wire Length	125mm
Connector	Standard PH2.0 3 pin
